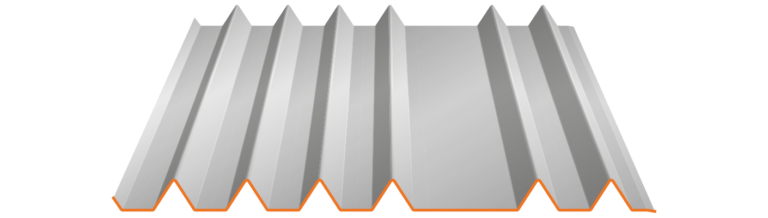

CADENCE T3 [630T 4.2]

Home » CADENCE » CADENCE Triangle » CADENCE T3 [630T 4.2]

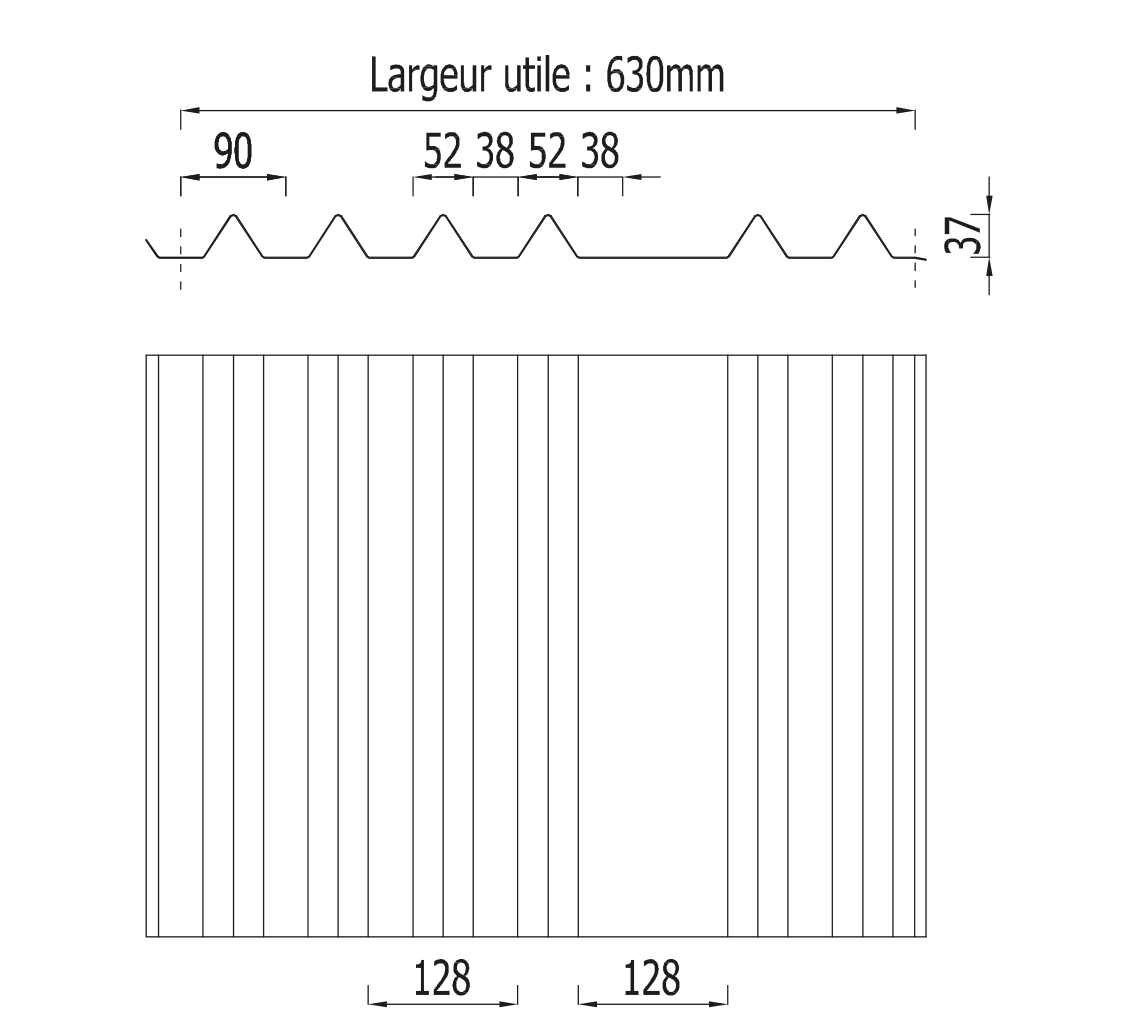

dimensions

informations

With the profiles of the Cadence Collection : LET’S COMPOSE YOUR OWN RHYTHM. Playing with sobriety, composing your own rhythm with finesse, to obtain a subtle singularity, with the assurance of a result of discreet and timeless elegance.

specifications

Width (useful)

630 mm

Height (useful)

37 mm

Max. length

8000 mm

Min length

1100 mm

Thickness

0.75 mm

Downloads

colors

Others

PROFILES

Discover a collection of 10 triangle profiles to compose your facade

CADENCE T1 [630T 7]

Usable width:630 mm

Height:37 mm

CADENCE T2 [630T 2.4]

Usable width:630 mm

Height:37 mm

CADENCE T3 [630T 4.2]

Usable width:630 mm

Height:37 mm

CADENCE T4 [630T 2.1.2]

Usable width:630 mm

Height:37 mm

CADENCE T5 [630T 2.2.1]

Usable width:630 mm

Height:37 mm

CADENCE T6 [630T 1.2.2]

Usable width:630 mm

Height:37 mm

CADENCE T7 [720T 2.1.1]

Usable width:720 mm

Height:37 mm

CADENCE T8 [720T 1.1.2]

Usable width:720 mm

Height:37 mm

CADENCE T9 [720T 3.1]

Usable width:720 mm

Height:37 mm

CADENCE T10 [720T 1.3]

Usable width:720 mm

Height:37 mm

CADENCE XL 810T

Usable width:810 mm

Height:37 mm

CADENCE XL 900T

Usable width:900 mm

Height:37 mm
