CDB 250

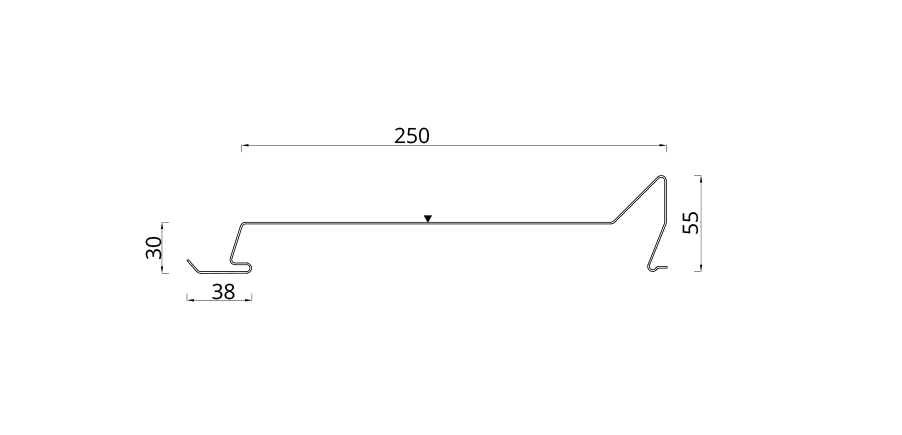

dimensions
information

With the profiles of the Epure Collection, discover models with different widths for a rhythmic or random facade. An exclusive range of standing seam slats with exclusive mast colors for a zinc-like finish.

specifications

Width (effective)

250 mm

Height (effective)

55 mm

Max. length

6000 mm

Min. length

1000 mm

Thickness

1.0 mm
downloads

colorways

Zinc Style

Available in
1.00 - 0.75 - 0.63mm

Deep matte and very fine surface texture for a true-to-life zinc effect.

0102 – AZURO

50µm

0104 NERRO

50µm

0103 – GALEO

50µm

0101 – VOLCANO

50µm

OTHER

PROFILES

Models with different widths FOR A RHYTHMIC OR RANDOM FACADE.
